During its standard operation in the test cave, the VERDI Laser
delivers an output power of 4 W
(I=25.35A). When the shutter is closed, the current drops to 20.18 A. Note
that before turning the Laser ON, you have to make sure that the chiller
operates at a temperature of 19 C.
To acces special parameters, hit the Menu
key
on the controller and scroll
(up/down) to get to the desired screen, then hit Select.
When
done, press Exit to return to
the standard parameters screen.

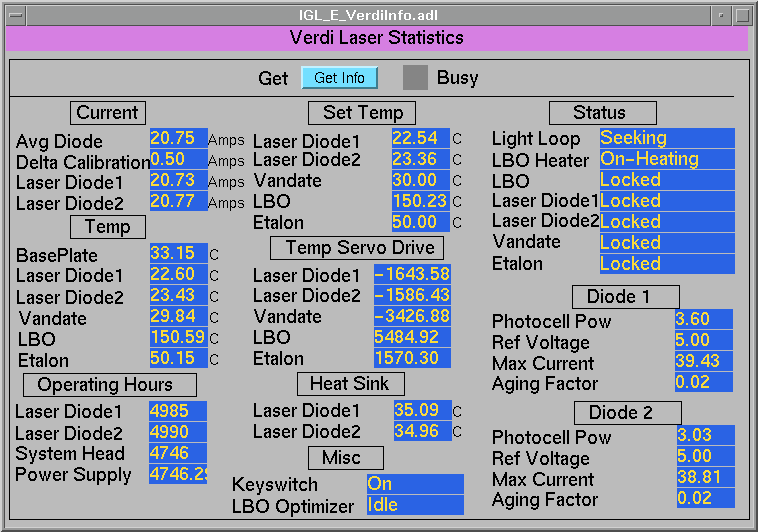

Laser status screen
| S/W version | 6.00, 11/8/99 |
| Heatsink 1 (T) | 21.88 C |
| Heatsink 2 (T) | 20.97 C |
| Baseplate (T) | 31.76 C |
| Head (Hours) | 2307.82 |
| Diode 1 (Hours) | 2374.36, I = 25.29A |
| Diode 2 (Hours) | 2378.20, I = 25.36 A |
Diode parameters screen
| Diode 1 | Voltage | 1.81 V |
| Current | 25.29 A | |
| Photocell | 3.76 V | |
| Diode 2 | Voltage | 1.78 V |
| Current | 25.36 A | |
| Photocell | 3.59 V |
RS232 Baudrate setup
| RS232 protocol | 9600,8,N,1 |
The Laser controller should not be turned off. However, if you need to, make sure that you cool the LBO crystal to room temperature before you turn the power down.
Site maintenance performed
on June 30, 2003
Maintained by baylac@jlab.org
