TITLE:

ES&H Manual



DOCUMENT ID:

6670 Appendix T2

Cold Stress Work Procedure





1.0          Purpose



This appendix addresses the procedure used to mitigate potential injury or illness due to cold stress.



2.0          Scope



This appendix provides minimum mitigation steps to be used at Jefferson Lab to reduce injuries or illnesses caused by cold stress.  Overarching responsibilities and expectations are provided in ES&H Manual Chapter 6670 Heat and Cold Stress Mitigation Program.



There are no known controlled work environments with temperatures that would be considered cold stress areas at Jefferson Lab.  Contact Industrial Hygiene for more specific information on cold stress or further instructions if workers will be exposed continuously to extreme temperatures as listed in the Increased Danger or Great Danger areas of the Windchill Chart in Section 4.0.



Subcontractors follow this procedure or a Jefferson Lab approved procedure.



This appendix does not address specific hazards or potential injuries from sudden exposure to cryogenic materials.  (See ES&H Manual Chapter 6550 Cryogenic Safety Program.)



These mitigation steps are used when Wind Chill air temperature reaches 37oF.



3.0          Responsibilities

NOTE:           Management authority may be delegated at the discretion of the responsible manager.  Refer to ES&H Manual Chapter 6670 Heat and Cold Stress Mitigation Program for a list of overarching responsibilities for this program.



3.1            Everyone at Jefferson Lab

·       Maintain fluid intake, preferably warm beverages.

·       Wear layers of loose, warm clothes, a hat, and gloves.

·       Immediately report cold stress symptoms[1] to supervisor and Occupational Medicine.

·       Stop activity at first signs of cold illness.  Move to a warm, dry area.



3.1            Supervisor/Subcontracting Officer’s Technical Representative (SOTRs)/Sponsor

·       Eliminate sources of cold stress where feasible (see ES&H Manual Chapter 6670 Appendix T3 Assessment of Thermal Hazards).

·       Provide heat and cold stress prevention guidance for employees working under these conditions.  Guidance may be requested from Industrial Hygiene or Occupational Medicine.

·       Provide appropriate rest periods for employees.  Consult Industrial Hygiene for appropriate work/rest schedules.

·       Familiarize workers with cold stress, its symptoms1, and prevention.

·       Plan and schedule work to minimize worker exposure to extreme temperatures.



3.1.1       SOTR also:

·       Ensure subcontractor personnel abide by their Jefferson Lab accepted procedure or this procedure’s requirements.



4.0          Process Steps



These stages are implemented for outside work.



Stage 1:          Wind Chill < 37oF



Step 1:            Facilities Management – based on conditions at Jefferson Lab (http://wwwold.jlab.org/fm/wx/) – initiates notification of cold stress conditions.



Step 2:            ESH&Q Professional/Supervisors/SOTRs Upon receipt of cold stress condition notification:

·       Inform workers of cold stress notification.

·       Familiarize workers with cold stress, its symptoms1, and prevention.

·       Confirm provisions for fluid replacement and shelter procedures as appropriate.



Step 3:            Upon notification, Jefferson Lab Staff:

·       Drink ample amounts of water – more than your sense of thirst indicates.

·       Wear layered clothing.

·       Recognize personal risk factors.  If at higher risk than normal, advise your supervisor and Occupational Medicine, and limit work activities.  If taking medication, be familiar with its risk potential.

·       At first signs of cold illness, seek a warmer area.



Stage 2:          Wind Chill < 16oF

These conditions will be assessed by management and additional actions will be determined as conditions warrant.



5.0          References

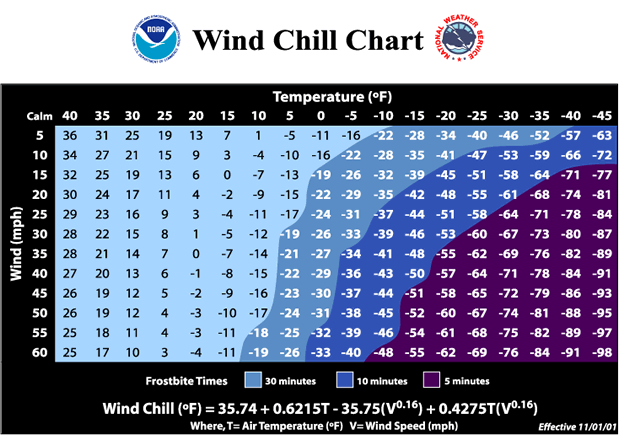

Windchill Chart



Actual Temperature Reading (oF)



50

40

30

20

10

0

-10

-20

-30

-40

Wind Speed

(in mph)

Equivalent Chill Temperature (oF)

calm

50

40

30

20

10

0

-10

-20

-30

-40

5

48

37

27

16

6

-5

-15

-26

-36

-47

10

40

28

16

4

-9

-21

-33

-46

-58

-70

15

36

22

9

-5

-18

-36

-45

-58

-72

-85

20

32

18

4

-10

-25

-39

-53

-67

-82

-96

25

30

16

0

-15

-29

-44

-59

-74

-88

-104

30

28

13

-2

-18

-33

-48

-63

-79

-94

-109

35

27

11

-4

-20

-35

-49

-67

-82

-98

-113

40

26

10

-6

-21

-37

-53

-69

-85

-100

-116

Over 40 mph

little added effect

LITTLE DANGER

In < hr with dry skin.

INCREASED DANGER

Danger of freezing exposed flesh within one minute

GREAT DANGER

Flesh may freeze within 30 seconds



6.0          Revision Summary



Revision 1.2 – 09/27/12 – Periodic Review.  No changes to content required.

Revision 1 – 11/19/09 – Update to reflect current laboratory operations







ISSUING AUTHORITY

TECHNICAL

POINT-OF-CONTACT

APPROVAL DATE

EXPIRATION DATE

REV.





ESH&Q Division

Dick Owen

11/19/09

09/27/15

1



This document is controlled as an on line file.  It may be printed but the print copy is not a controlled document.  It is the user’s responsibility to ensure that the document is the same revision as the current on line file.  This copy was printed on 9/27/2012.



[1] Fatigue or drowsiness; uncontrolled shivering; cool bluish skin; slurred speech; clumsy movements; irritable, irrational or confused behavior.
